QC Editing

                While an MDL file may have been used by MANY programs from the 90's and early 2000's, The focus here is Valve's MDL format for Gold-source. An MDL file Consists of 3 files:

".QC" (Q.uake C) A script file that compiles SMD files, assigns animation SMD's and locates textures.

static (non-animated) QC template

$modelname Cube.mdl
$cd "./"
$scale 1
$cliptotextures
// reference mesh
$body studio cube
// Animation
$sequence "static" "cube"

more on QC scripting

".SMD" (S.tudio M.DL D.ata) A three dimensional model file used by the Source and Gold-source engine, it is stored in an ASCII text format, However it should be noted that technically there are 2 SMD types: Model data and animation data

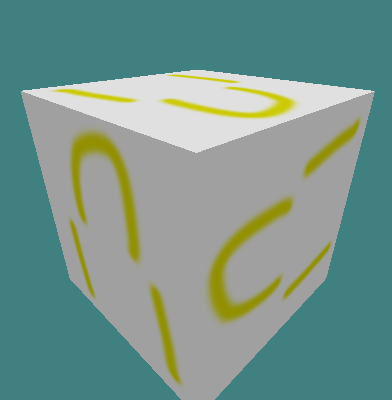

Example SMD (src file name: Cube.smd*)


version 1
nodes
0 "root" -1
end
skeleton
time 0
0 0 0 0 0 0 0
end
triangles
0  1.000000 1.000000 -1.000000  0.000000 0.000000 -1.000000  0.000000 1.000000
0  1.000000 -1.000000 -1.000000  0.000000 0.000000 -1.000000  0.000000 0.666667
0  -1.000000 -1.000000 -1.000000  0.000000 0.000000 -1.000000  0.333333 0.666667
0  1.000000 0.999999 1.000000  0.000000 0.000000 1.000000  1.000000 0.333333
0  -1.000000 1.000000 1.000000  0.000000 0.000000 1.000000  1.000000 0.666667
0  -1.000000 -1.000000 1.000000  0.000000 0.000000 1.000000  0.666667 0.666667
0  1.000000 1.000000 -1.000000  1.000000 -0.000001 -0.000000  1.000000 0.333333
0  1.000000 0.999999 1.000000  1.000000 -0.000001 -0.000000  0.666667 0.333333
0  0.999999 -1.000001 1.000000  1.000000 -0.000001 -0.000000  0.666667 0.000000
0  1.000000 -1.000000 -1.000000  -0.000000 -1.000000 -0.000000  0.333333 0.333333
0  0.999999 -1.000001 1.000000  -0.000000 -1.000000 -0.000000  0.333333 0.000000
0  -1.000000 -1.000000 1.000000  -0.000000 -1.000000 -0.000000  0.666667 0.000000
0  -1.000000 -1.000000 -1.000000  -1.000000 0.000000 -0.000000  0.333333 0.666667
0  -1.000000 -1.000000 1.000000  -1.000000 0.000000 -0.000000  0.000000 0.666667
0  -1.000000 1.000000 1.000000  -1.000000 0.000000 -0.000000  0.000000 0.333333
0  1.000000 0.999999 1.000000  0.000000 1.000000 0.000000  0.000000 0.000000
0  1.000000 1.000000 -1.000000  0.000000 1.000000 0.000000  0.333333 0.000000
0  -1.000000 1.000000 -1.000000  0.000000 1.000000 0.000000  0.333333 0.333333
0  -1.000000 1.000000 -1.000000  0.000000 0.000000 -1.000000  0.333333 1.000000
0  1.000000 1.000000 -1.000000  0.000000 0.000000 -1.000000  0.000000 1.000000
0  -1.000000 -1.000000 -1.000000  0.000000 0.000000 -1.000000  0.333333 0.666667
0  0.999999 -1.000001 1.000000  0.000000 0.000000 1.000000  0.666667 0.333333
0  1.000000 0.999999 1.000000  0.000000 0.000000 1.000000  1.000000 0.333333
0  -1.000000 -1.000000 1.000000  0.000000 0.000000 1.000000  0.666667 0.666667
0  1.000000 -1.000000 -1.000000  1.000000 -0.000000 0.000000  1.000000 0.000000
0  1.000000 1.000000 -1.000000  1.000000 -0.000000 0.000000  1.000000 0.333333
0  0.999999 -1.000001 1.000000  1.000000 -0.000000 0.000000  0.666667 0.000000
0  -1.000000 -1.000000 -1.000000  -0.000000 -1.000000 0.000000  0.666667 0.333333
0  1.000000 -1.000000 -1.000000  -0.000000 -1.000000 0.000000  0.333333 0.333333
0  -1.000000 -1.000000 1.000000  -0.000000 -1.000000 0.000000  0.666667 0.000000
0  -1.000000 1.000000 -1.000000  -1.000000 0.000000 -0.000000  0.333333 0.333333
0  -1.000000 -1.000000 -1.000000  -1.000000 0.000000 -0.000000  0.333333 0.666667
0  -1.000000 1.000000 1.000000  -1.000000 0.000000 -0.000000  0.000000 0.333333
0  -1.000000 1.000000 1.000000  0.000000 1.000000 0.000000  0.000000 0.333333
0  1.000000 0.999999 1.000000  0.000000 1.000000 0.000000  0.000000 0.000000
0  -1.000000 1.000000 -1.000000  0.000000 1.000000 0.000000  0.333333 0.333333
end
